Containerized RO Plant

Containerized Reverse Osmosis Plant is Engineered with High Quality Components
Home ·Our Services ·Containerized RO Plant

Containerized RO Plant

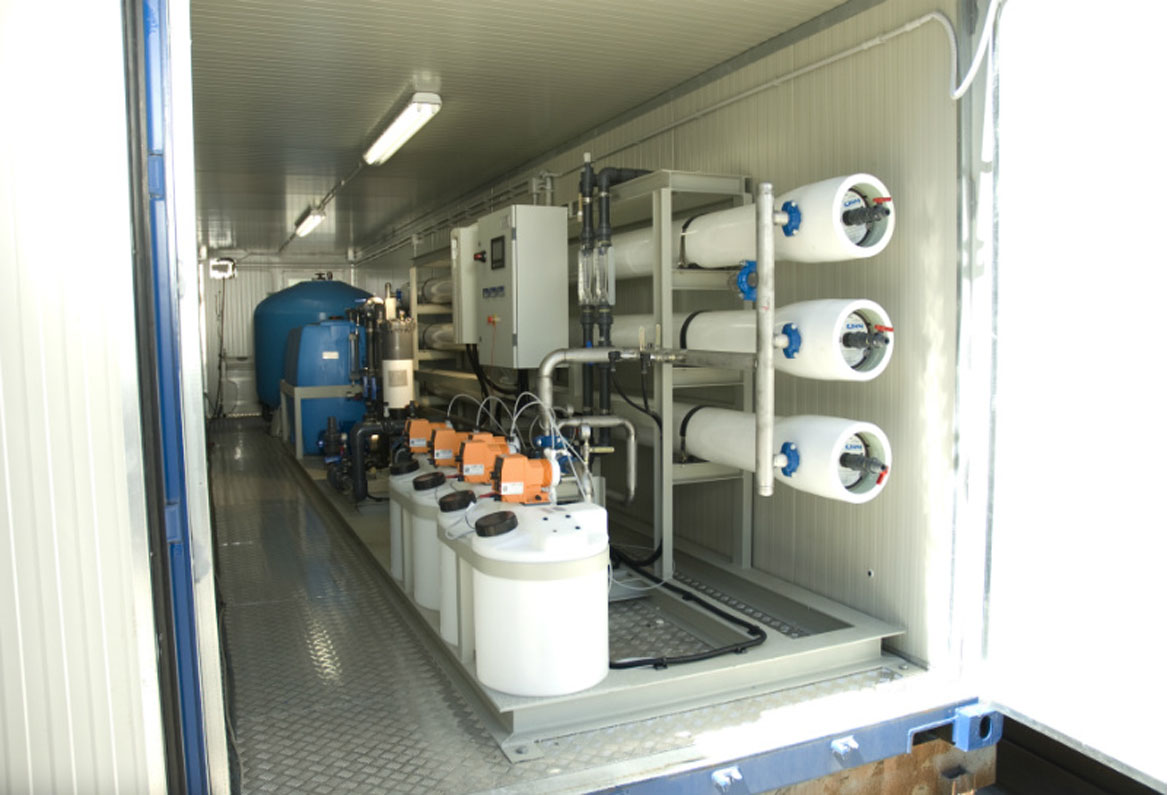

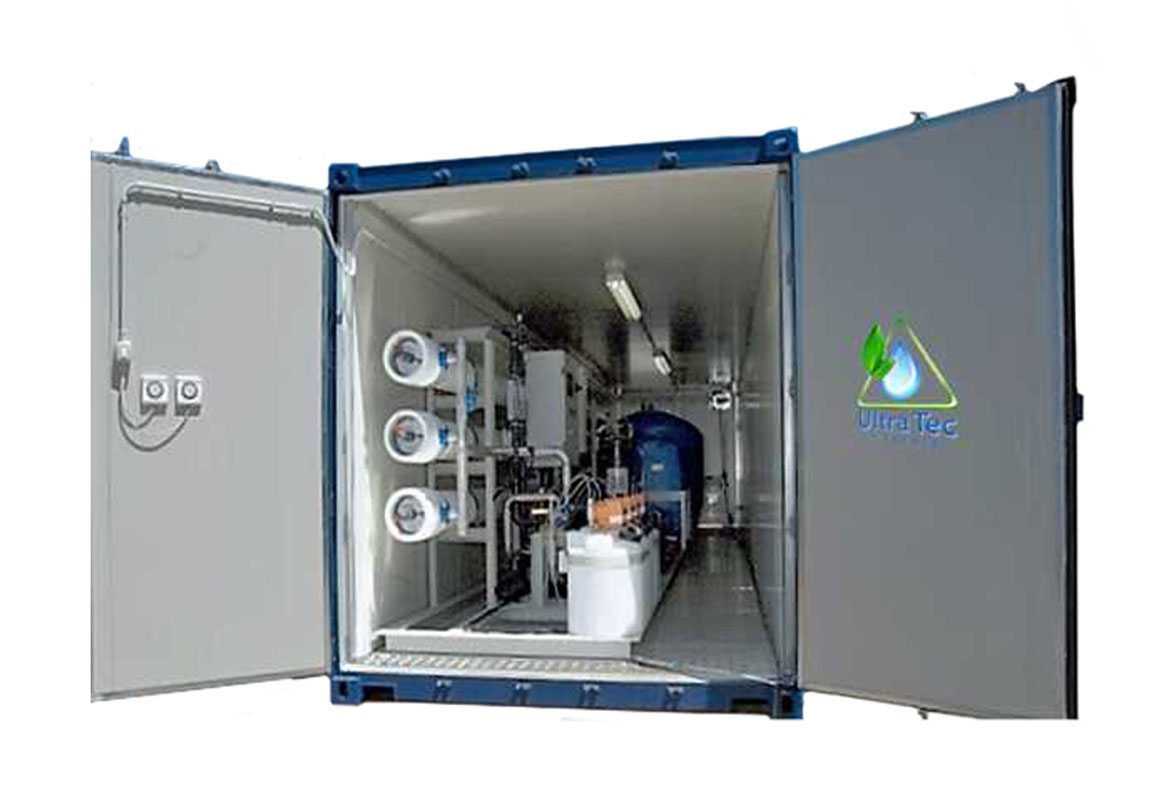

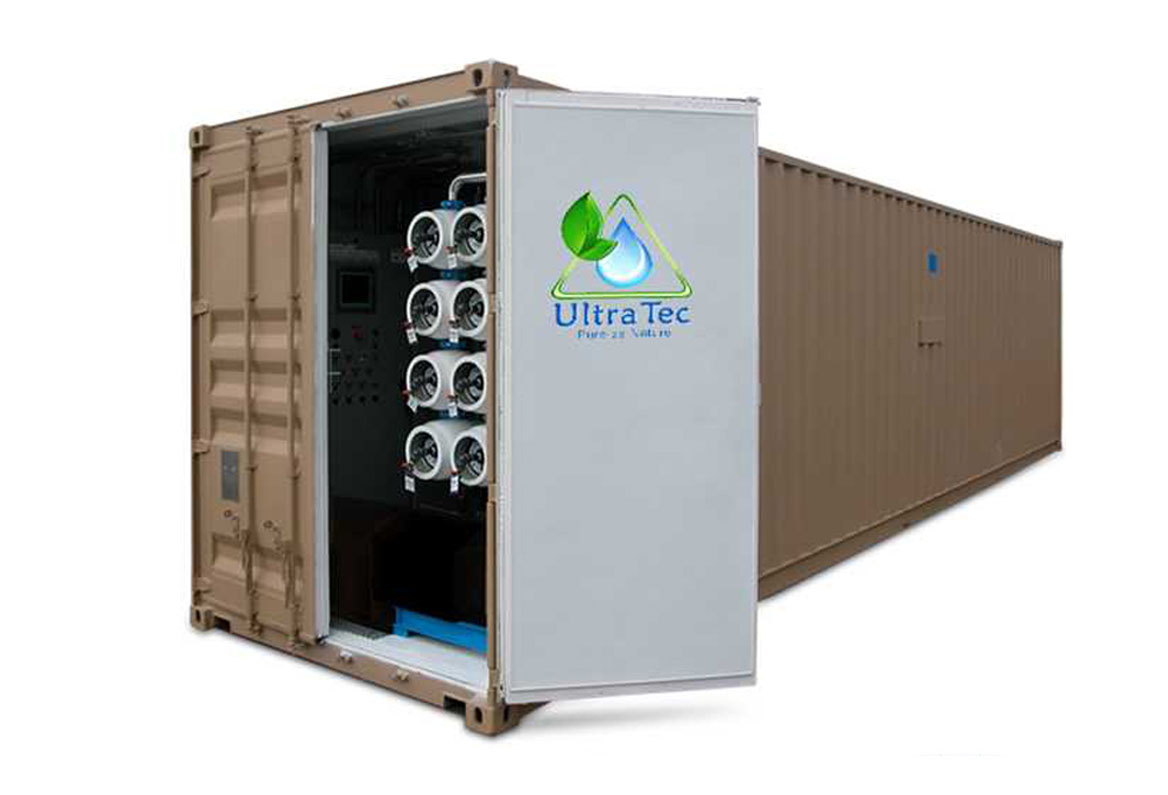

UltraTec containerized reverse osmosis systems are fully self-contained, turnkey water plants that can function on the go or as a permanent water treatment solution.

Pre-designed, module-sized plants, fully assembled in standard 40ft containers can be shipped to site on very short delivery time. Containerized approach eliminates the complexity of construction of a building to house a water purification plant. The container just needs to be shipped out to where water is needed, installation generally takes few days and after a brief training session, the plant operators will be ready to produce high-quality potable water.

Features :

    Solutions

    Each containerized reverse osmosis plant is engineered with high quality components to handle all types of water. UltraTec Water Treatment Technologies CSWRO are manufactured per customer specifications guaranteeing that each system will meet the water quality requirement. Pacific Aqua Technologies supplies a full line of standard and fully customized water treatment systems CSWRO, all of which are engineered using advanced 3D modelling and computer modelling.

    industrial ro water filter plant system  in UAE

    Complete water maker system

    Converts brackish, seawater or contaminated water to drinking water,

    Industrial process water or Agricultural water

    Very stable output water quality.

    High recovery rate (95%).

    Low maintenance and installation cost.

    PLC based automatic operation.

    Standard containers can be transported by rail, road or sea


Technology

The mechanism of reverse osmosis is different from filtration in that physical holes may not exist in an RO membrane (its pores are believed to be less than 0.0001 micron).

It is more likely that water and smaller molecular weight organics are able to diffuse through the membranes polymer by bonding between segments of the polymer?? chemical structure.

Standard Components

UltraTec Water Treatment supplies any type of water treatment in a containerized version.

Container designed for overseas operation.

High Pressure RO Feed Pump

Energy Recovery Device

VFD

Valves

Instrumentation and Control. PLC

Spiral wound thin film composite membrane

RFP pressure vessel

Powder coated Steel Frame

5 Micron cartridge pre-filter

Product and reject flow meters

Why containerization?

Containerized plants have many advantages over built-in plant room installations:

Plug and play unit

Quick installation

Limited civil work (only container foundation)

Easy transportation

Mobile: useful for construction sites

Turnkey delivery: piping, cables, air conditioning

Methodology

RO removes 90 to 99% of all the contaminants found in water. It is the heart of any well designed water purification system because it effectively removes a broad range of contaminants. It is the process by which water molecules are forced through a 0.0001 micron semi-permeable membrane by water pressure. Long sheets of the membrane are ingeniously sandwiched together and rolled up around a hollow central tube in a spiral fashion.

This rolled-up configuration is commonly referred to as a spiral wound membrane or module. They are available in different sizes for processing different quantities of water.

Typically, a module for home water treatment is as small as 2" diameter and 10" long, while one for industrial use may be 4" diameter and 40".

Video Tour For RO Plant

UltraTec manufactured per customer specifications guaranteeing that each system will meet the water quality requirement.

UltraTec Water Treatment supplies a full line of standard and fully customized water treatment systems CSWRO, all of which are engineered using advanced 3D modeling and computer modeling.

Purpose
Security
Applications

Why Choose Our Service Reverse Osmosis is very effective in treating brackish, surface and ground water for both large and small flows applications. Some examples of industries that use RO water include pharmaceutical, boiler feed water, food and beverage, metal finishing and semiconductor manufacturing to name a few.

Salient Features . Produce high-quality de materialized water
. Most modern membrane technology
. Modular designLow water-rejection rate
. Low operational and maintenance costs

The ideal applications for RO water filtration System . Safe Drinking Water
. Boiler Feed Water
. Ion Exchange Pre-treatment
. Beverage Production
. Pharmaceuticals
. Food Processing Industries
. Fisheries Industries

  • We Use AI In The Line Excellent purification of water from various elements, hardness and contaminants,
  • Smart RO PlantsHigh efficient with sediment filters that removes sediments and suspended particulates from water,
  • 100% AccuracyThese RO Plant Manufacturers are also used in offices, homes, hospitals, nursery homes, clinics, gyms, beauty salons, restaurants, schools and shops.
